Project Description

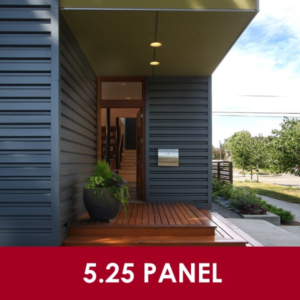

5.25 Panel

Brief

The 5.25 panel offers versatility and functionality for roofs and walls. The symmetrical rib 5.25 Panel offers excellent spanning and cantilever capabilities, making it an excellent choice for carports and walkway canopies.

Product Data

  • Rib Distance (Pitch) 5.25″

  • Rib Height: 1.25″

  • Available Gauges: 24, 26

  • Fasteners: Exposed

  • Panel Length: 1′ to 52′

  • Coverage: 31.5″ to 36.75″

WOODEN SPOT W77WOODEN CONCRETE X23NOTTY PINE W69ACASIA WOOD W23SLATE GRAY L2880POLAR WHITE H2070LIGHT STONE E7090HAWAIIAN BLUE B2090DARK BRONZE K2360FERN GREEN D2970CHARCOAL GRAY L2870PREWEATHERED GALVALUME L2890GALVALUME STEEL A755

Applications & Installations

Applications: Residential, Commercial, Agricultural. Can be installed over an open purlin system or a solid substrate. Use bead mastic on the overlap if used for a roofing application.
